Working principle.

The powdery material from the hopper through the spiral feeder quantitative evenly into sheet material hopper, the sheet material bucket maintains a constant level, and then by the sheet material inside the bucket longitudinal taper spiral material precompression degassing, arc notches and the material down to two roller, two pressure roller are uniformly distributed on the surface of the same shape of flat circular arc groove or half rhombic groove ( can be selected according to the shape of the particles ), the double output speed reducer and drum shaft drive, so that the two pressure rollers constant velocity reverse rotation, the taper spiral to the notch material bite into the groove and forced compression in an instant, the material through the compression after forming as the pressure decreases, the elasticity and gravity, fall off from the tank, into the crusher, granulator, then according to the user's requirements of particle size sieving, grading, can meet the quality requirements of the uniform particle product, sieve powder to ascend to the bunker cyclic pressing.

Characteristic.

#9830; no need to add any additives, forming a dry, improve the material bulk density, control dust pollution, reduce waste, reduce the transportation packaging costs, improve working environment.

#9830; reasonable design, compact structure, simple process, convenient operation, reliable operation.

#9830; high granule strength, not easy to two pieces.

#9830; particle shape and size can be adjusted according to customer.

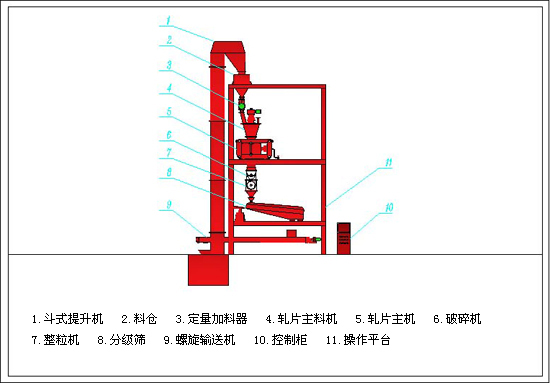

Sketch map.

Technical parameters:

Note: 1, table 1, note: data in the table is the basic data, according to the physicochemical properties of material change.
